Vertical Concrete Portable Diamond Core Drill Rig (FZK-20)

  • Vertical Concrete Portable Diamond Core Drill Rig (FZK-20)
  • Vertical Concrete Portable Diamond Core Drill Rig (FZK-20)
  • Vertical Concrete Portable Diamond Core Drill Rig (FZK-20)
  • Vertical Concrete Portable Diamond Core Drill Rig (FZK-20)

Vertical Concrete Portable Diamond Core Drill Rig (FZK-20)

Product Description

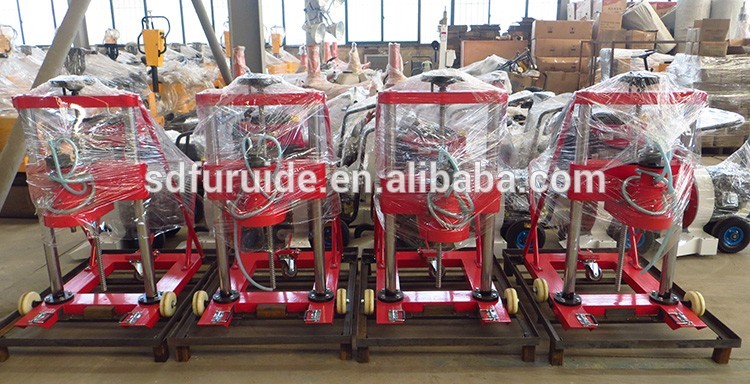

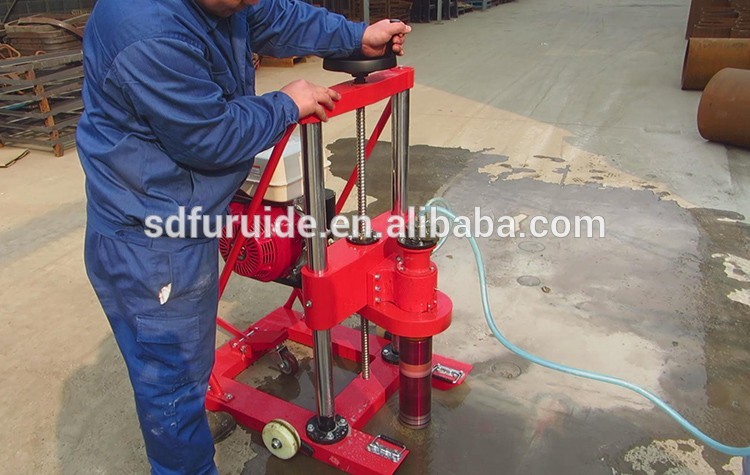

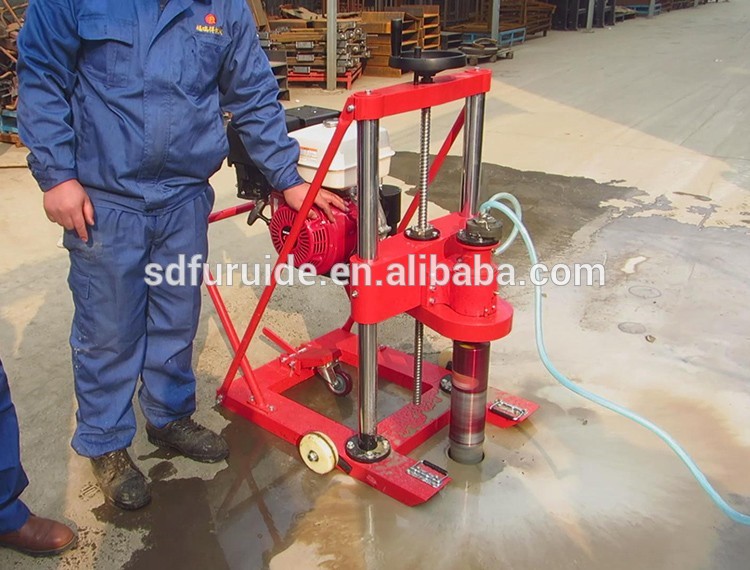

FZK-20 Gasoline Vertical Concrete Portable Diamond Core Drill Rig


This machine is gasoline engine powered, easy to start, reliable operation,suitable for non-electric sites and large diameter drilling project.


Main purpose:

Diamond Core Drill Rig

FZK-20 type core drilling machine adopts high-speed cutting technology, equipped with thin wall diamond drill,are widely used for drilling and coring in engineering construction, municipal engineering, equipment installation engineering and construction quality inspection project and other areas.    Concrete Core Drilling Machine Price


1.Coring on concrete, asphalt, limestone foundation highways, airports, ports, dams, etc ,doing anti-      compression and anti-bending test.

2. Installation of large machines drill bolt holes.

3. Install bridge handrail and traffic safety railing drilling.


Main features:

Diamond Core Drill Rig

1. Dual-column result, spiral feeding methods, good stability, simple effort.

    Equipped with a running wheel, easy to move.

2. High-speed cutting technology and thin wall diamond drill bits, drilling cut high-                                      strength concrete, high drilling efficiency, accurate holes, hole wall smooth, good quality into the hole, core samples intact smooth, little vibration, no damage to buildings .

Diamond Core Drill Rig

Diamond Core Drill Rig

Model FZK-20
Engine type HONDA GX390 or Piriton
Power 13.9HP
Drilling diameter 100mm/200mm or as requested
Max drilling depth 350mm or as requested
Output speed 800—1200RPM
Weight 150kg
Packing Size 1400*900*1500mm

Diamond Core Drill Rig


Diamond Core Drill Rig

Diamond Core Drill Rig

Jining Furuide Machinery Manufacturing Co., Ltd.

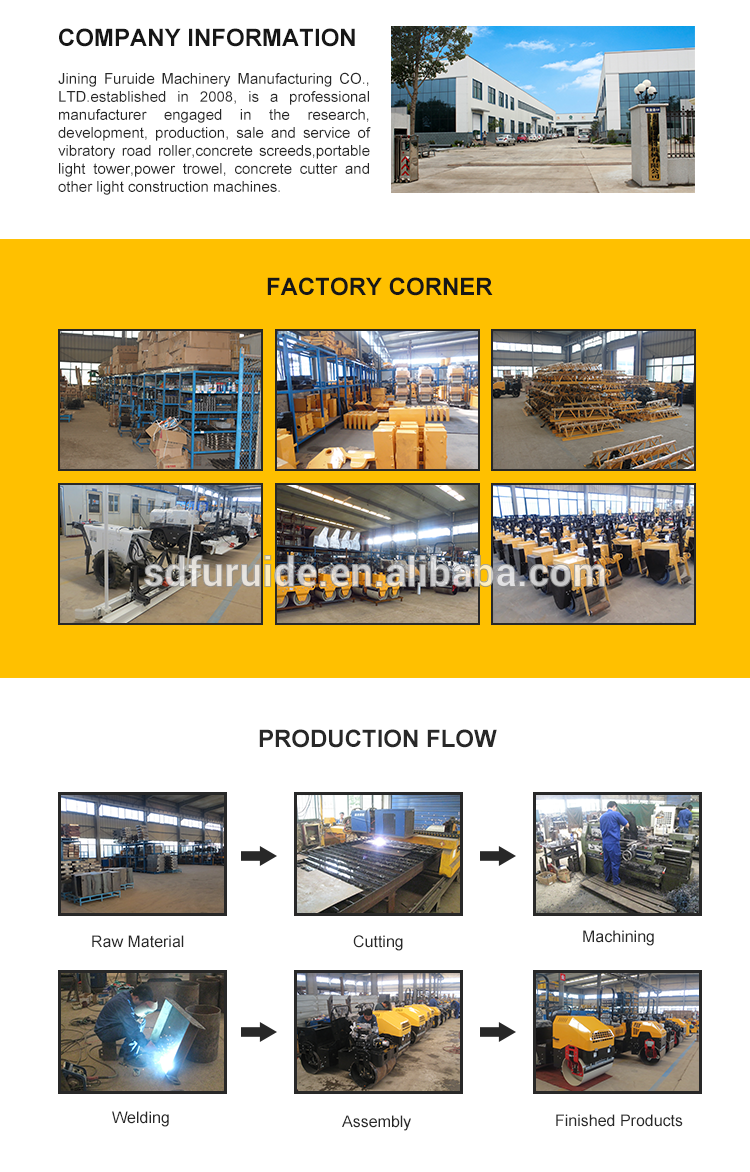

 Jining Furuide Machinery Manufacturing CO., LTD, established in 2008, is a professional manufacturer engaged in the research, development, production, sale and service of vibratory road roller,concrete screeds,portable light tower,power trowel, concrete cutter and other light construction machines.We are located in Hometown of Confucius and Mencius Jining city of Shandong province with convenient transportation access. Covers 40 acres area, over 20,000 m² production workshop. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including concrete laser screed and crack filling machine. In addition, we have obtained certificates of C E, I S O 9 0 0 1 and 10 national patents of vibratory road roller.Selling well in all cities and provinces around China and our products are also exported to clients in such countries and regions as South Korea,the United States, Europe,Southeast Asia,Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.We are looking forward to forming successful business relationships with new clients around the world in the near future.
