wholesale Cheap 2000mm fast cut granite cutting segment in bangalore

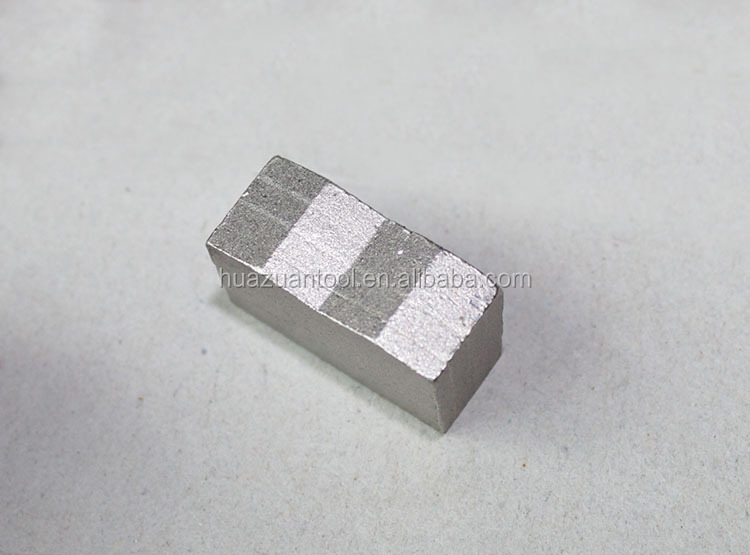

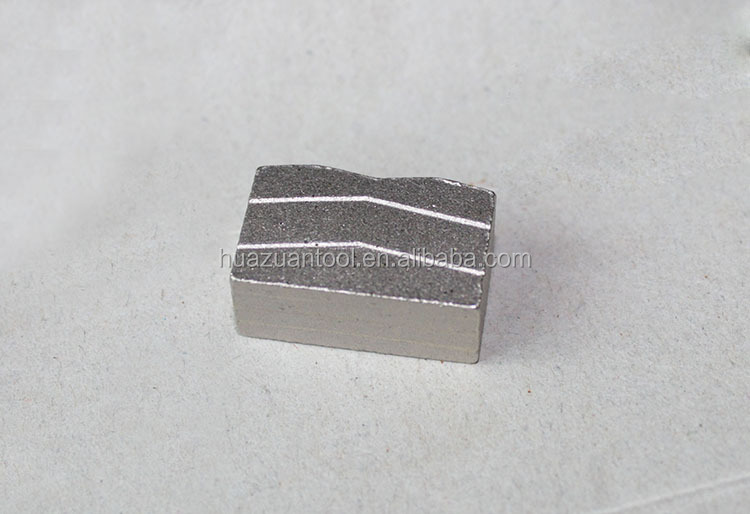

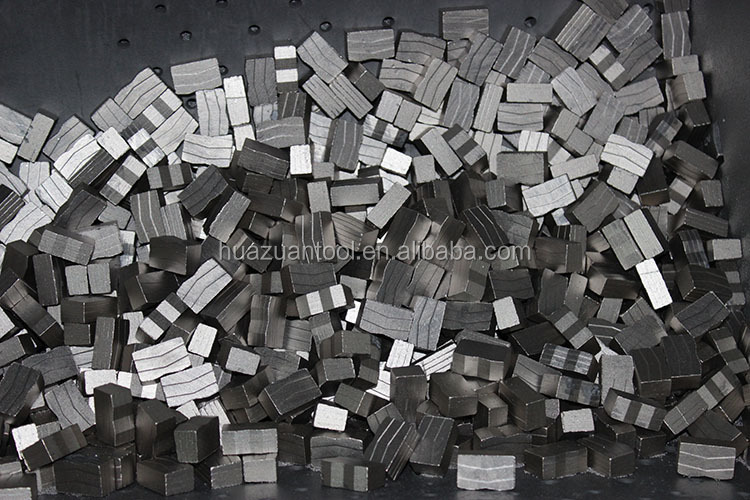

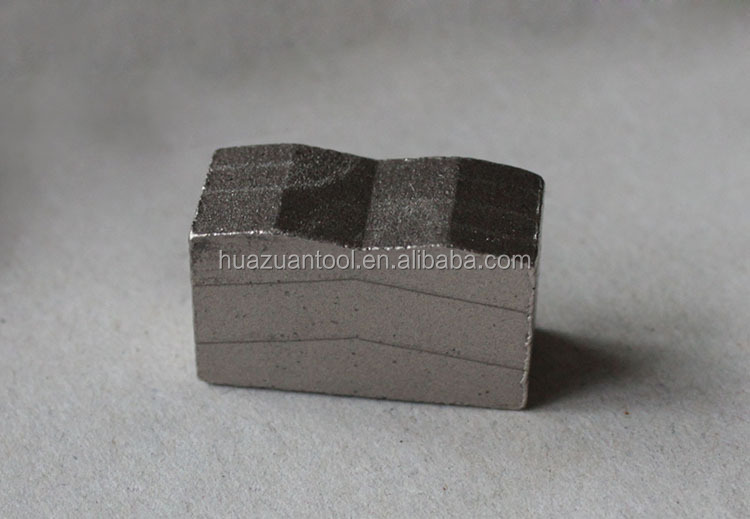

 DIAMOND SEGMENT FOR STONEDiamond Segments Diamond segment is one part of diamond saw blade, gangsaw blade ,ect. It is one of most popular slab cutting and grinding  tools. According to practical requirements, we have developed different types of blades and segments, such  as for general use, for granite, for marble and for artificial stone etc.We can also supply other individual segments according to different equipment, different processed material, and different  requirement for processing precision from our customers.Applicable MachineBridge Cutting MachineEdge Cutting MachineGrinding machineCore drill bits machineApplicationGranite ,Marble,Sandstone,Limestone,Concrete,Asphalt,Refractory Brick.SpecificationsΦ250-Φ3500  1.Excellent quality raw material2.We promise that each of them can reach to 30%-40% concentration of diamond3.Each individual operation is supervised by expert4.Can adjust lifespan according to you needs on the basis of enough sharpness   Dimenssion Sheet

Out Diameter		Bore Diameter(mm)	Dimension of segment (mm)			NO. of Teeth
Inch	mm		Length	Thickness	Height
10''	250	20/50/60	40	2.6/2.8	10,12,15	17
12''	300	20/50/60	40	2.8/3.0	10,12,15	21
14''	350	20/50/60	40	3.0/3.2	10,12,15	24
16''	400	20/50/60	40	3.4/3.6	10,12,15	28
18''	450	20/50/60	40	3.8/4.2	10,12,15	32
20''	500	20/50/60	40	4.0/4.2	10,12,15	36
22''	550	20/50/60	40	4.6/4.8	10,12,15	40
24''	600	20/50/60	40	4.6/4.8	10,12,15	42
26''	650	20/50/60	40	5.0/5.2	10,12,15	46
28''	700	20/50/60	40	5.0/5.2	10,12,15	50
30''	750	20/50/60	40	5.2/5.6	10,12,15	54
32''	800	50/60/80	40	5.5/6.0	10,12,15	57
Single/Mulit blades segment dimenssion
36''	900	50/60/80	24	6.0/6.8	12/13/15	64
40''	1000	50/60/80	24	6.7/7.0	12/13/15	70
48''	1200	50/60/80	24	6.5/7.5	12/13/15	80
52''	1300	50/60/80	24	7.0/7.6	12/13/15	88
56''	1400	50/60/80	24	8.2/8.8	12/13/15	92
64''	1600	50/60/80	24	8.4/9.0	12/13/15/20	108
72''	1800	50/60/80	24	9.1/9.7	12/13/15/20	120
80''	2000	50/60/80	24	10.5/11	12/13/15/20	128
88''	2200	50/60/80	24	10.5/11	12/13/15/20	132
100''	2500	50/60/80	24	11/12	12/13/15/20	140
120''	3000	50/60/80	24	11.5/12.5	12/13/15/20	160
140''	3500	50/60/80	24	12/12.5	12/13/15/20	180

   *Other specifications are available upon request. PRODUCT PICTURES WORK FLOW PRODUCT OPERATIONwww.huazuantool.com  Quanzhou Huazuan Diamond Tools Co., Ltd. was established in 1989, located in Nan’an city, Fujian province. It takes on the mission of Change the Poor Quality Image of China Diamond Tools in the World and persists in the values of Honesty and Trustworthiness, Responsibility, Sharing and Cooperation, Innovation and Enthusiasm, Appreciation and Entertainment. With the stable development of over 20 years, the company’s R&D, production technology and product quality already rank the leading level in the field of diamond tools. www.huazuantool.com Q:Are you a factory or trading company?A:we are factory. Q:Where is you factory located? How can I visit you?  A:Our factory located in Quanzhou City,Fujian Province,China.you can fly to Xiamen international air port, then train about 30minutes to QuanZhou train station,and we will pick you up.Welcome to visit us! Q:can I get samples?A:We honored to offer you sample. Q:How do your factory do regarding quality control?A:Quality is 1st priority.we always attach great importance to quality controling from raw material to shipping. our factory has gained TUV Rheinland and BSCI certificates . . General Order InformationWe take great pride in our work and in the wide variety of products that we offer.we are experienced in servicing the Middle East market, US market ,European market and Africa market,Asia market. Please be aware that our production lead times depend on specific items and item quantities.Our success has been based on our understanding of the demands and nature of promotional and marketing deadlines.That's why we always ensure that every order is delivered on time. .Please Check below for more information on placing an order.                             1.Inquiry-Professional quotation.2.Confirm the price,lead time,payment term etc.3.Freedom sales send the Proforma Invoice with freedom seal.4. Customer make the payment for deposit and send us Bank receipt.5. Initial Production Stage-Inform the clients that we have got the payment,And will make the samplesaccording to your request, send you photos or Samples to get your approval. After approval, we informthat we will arrange the production & inform the estimated time.6.  Middle Production-send photos to show the production line which you can see your products in .Confirm the estimated delivery time again.7. End Production-Mass production products photos and samples will send to you for approval.You can also arrange the third party Inspection .8. Clients make payment for balance and Freedom Ship the goods .Also can accept payment term-Balanceagainst B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.9.  Order can be say “finish” when you receive the goods and satisfy with them .10. Feedback to Huazuan diamond tools about Quality, Service, Market Feedback & Suggestion

Contact us if you need more details on Granite Cutting Segment In Bangalore. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Diamond Segments For Granite、Wholesale Segment. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Diamond Segment > Diamond Segment
