Marble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting Marble

Product Description

Marble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting Marble Product Description

Product Name

 Hot Pressed Diamond Cutting Segment For Granite Marble Reinforce Concrete

Size

 Standard size of diamond segment or as your request

Diameter

 250mm-2500mm

Application

Cutting Granite Marble Sandstone Limestone Lava Concrete,Lava etc

Feature



1. Fast cutting & long life & Stable performance, High grade of diamonds

2. Different bonds are for different applications & precise segment size

3. Working safe, quiet, and precise, reducing cutting & working time

4. Great adaptability & No chipping

Package

 Color box,double blister card,skin packing,white box etc

Supply ability

 1000 sets/week(We accept mixed order)

Quality

ISO9001&Gold Supplier

Factory=Quality Control=Competitive Price=Owntechnology=OEM

Marble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleDiamond segments or rims are made up of a mixture of diamonds and metal powders. Diamonds used in blades are almost exclusively manufactured diamonds in various grit size and quality grades. In the manufacturing process, the metal powder and diamond grit mixture is hot pressed at high temperatures to form a solid metal alloy (called the bond or matrix) in which the diamond grit is retained.The segment or rim is slightly wider than the blade core. This allows the cutting edge to penetrate through the material while protecting the steel body.The application of bond (or Matrix)
- Typically the following rule applies :
- For hard materials : use soft bonds.
- For soft materials : use hard bonds.Marble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting Marble Example :
Limestone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.Marble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleSpecifications
Diamond Segment For Granite
Diameter of Diamond Saw Blade(mm)Length(mm)Width(mm)Height(mm)Segment No(PCS/SET)
2504031517
3004031521
350403.21524
400403.41528
4504041532
500404.21536
600404.61542
700405.61542
800405.61546
9002461564
1000246/6.81570
1200246.5/7.51580
1400247.5/8.51592
1600248.4/9.215108
1800249.2/1015120
2000249.5/10.515128
22002410.5/11.515132
25002411.5/12.515140
30002412.5/13.515160
Diamond Segment For Marble
Diameter of Diamond Saw Blade(mm)Length(mm)Width(mm)Height(mm)Segment No.(PCS/SET)
2504031018
3004031022
350403.41025
400403.61029
4504041032
500404.21036
6004051042
700405.61042
800405.61046
9002471064
10002471070
12002481080
1400248.51092
160024910108
1800249.510120
2000249.510128
22002410.510132
25002411.510140
30002412.510160
*Other specifications are available upon your request.

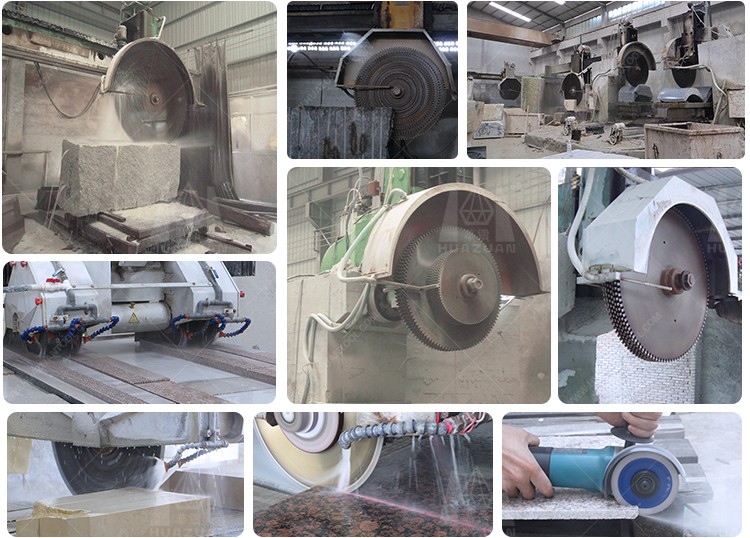

 Application Marble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting Marble Marble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleMarble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting Marble Shipping & PaymentMarble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleMarble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleHUAZUAN Diamond ToolMarble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleMarble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleMarble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting MarbleContact UsMarble Diamond Cutter Diamond Segment For 400mm Saw Blade Cutting Marble

Contact us if you need more details on Diamond Segment For 400mm Saw Blade. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Diamond Segments For Granite、Granite Cutting Diamond Segment. If these products fail to match your need, please contact us and we would like to provide relevant information.
