Home > Products > Diamond Segment > Diamond segment for granite > Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone

Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone

Product Description

                          Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone Product Details
Product Name Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone
Specification Dia. 3000mm, Segment Size: 24x12.5/13.5x25mm, 160pcs/set
Segment Structure Multi Layers
Welding Technology Silver welding by high frequency machine
Application Granite Block Cutting
Machine Bridge cutting m/c, Single arm m/c
MOQ 160pcs
Delivery Date One Week
Main Market Dubai, Russia, Ukraine, Poland, Serbia, etc.

-- For further information or any particular care, please feel free to contact us.

-- Professional consultation will be provided. High end custom is always available.


Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone   Typical features of huazuan granite segment for block cutting: Sharpness, Fast Cutting Great adaptability, No Chipping Customize different formulars and various hardness metal bonds according to stone nature.   Standard specifications for Diamond Segment for granite block cutting:

Diameter (mm)

Segment Dimension (L × W × H)

Segment No.

Structure

Length

Width (Taper Type)

Height

900

24

7.0/6.5

10/12/15/20

64

Sandwich

or

Multi-Layer

1000

24

7.0/6.5

10/12/15/20

70

1100

24

7.4/6.8

12/15/20

74

1200

24

7.5/7.0

12/15/20

80

1300

24

8.0/7.5

12/15/20

88

1350

24

8.4/7.7

12/15/20

88

1400

24

8.5/8.0

12/15/20

96

1600

24

9.0/8.7/8.4

12/15/20

104/108

1700

24

9.4/8.9/8.4

12/15/20

112

1800

24

9.5/9.0

12/15/20

120

2000

24

10.5/9.5

12/15/20

128

2200

24

11.5/10.5

12/15/20

132/136

2500

24/30

12/11.5/11

15/20/25/30

140

2700

24/30

12/11.5/11

15/20/25/30

140

3000

24/30

12.5/12/11.5

15/20/25/30

160

3500

24/30

13/12.5/12

15/20/25/30

180

Other sizes are available as per customers’ request.

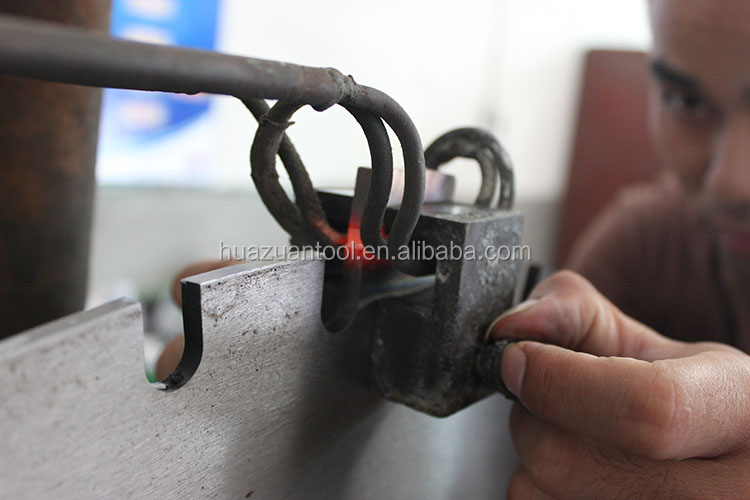

Using Scene Diamond segment for granite cutting used for single or multi Circular Saw Blade from 900mm to 3500mm, suitable for all kinds of granite, sandstone, basalt, and kinds of hard stone with quartz.   Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone   The features of the diamond segments for Saw Blade should match the nature of the material to be cut.   1. If the material is hard, the bond of the diamond segments should be softer.     Because diamonds will become blunt when cutting hard material. Softer bond can be     worn down with the blunt diamonds faster, then make new diamonds beneath be more easily exposed to participate in cutting   2. If the material is relatively softer, the bond should be harder.     The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the Diamond Tool's service life. Guidence for using  Attention for welding: High frequency silver welded machine is recommended instead of welding by fire. Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.     Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone   Please try best to offer below information when you are placing order: Diam.: (inch or mm)   Segment Size (LxWxH, and thickness of steel core if possible) Segment Formation (sandwich type or multiple line type) Welding technology ( Silver Welding by high frequency machine, or Laser weldng) Cutting target (for granite, sandstone or other hard stone including quartz) Order quantity (how many pcs of blade or how many sets of segment) Machine power (motor/rotation speed if possible) Feeding speed (meter/minute) Expected cutting depth(mm, at every turn, to and from) Cooling system(water cooling or oil cooling, is it including coolant, the rate, liter/m ) Expected delivery time Our Advantage Good Price 3000mm Diamond Cutting Segment for Granite Tomb StoneGood Price 3000mm Diamond Cutting Segment for Granite Tomb Stone   Processing Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone   Packaging & Shipping   Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone
  About US - HUAZUAN Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone   Contact US Good Price 3000mm Diamond Cutting Segment for Granite Tomb Stone

Contact us if you need more details on Diamond Segment Price. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Diamond Cutting Segment、Diamond Cutting Segment For Granite. If these products fail to match your need, please contact us and we would like to provide relevant information.
