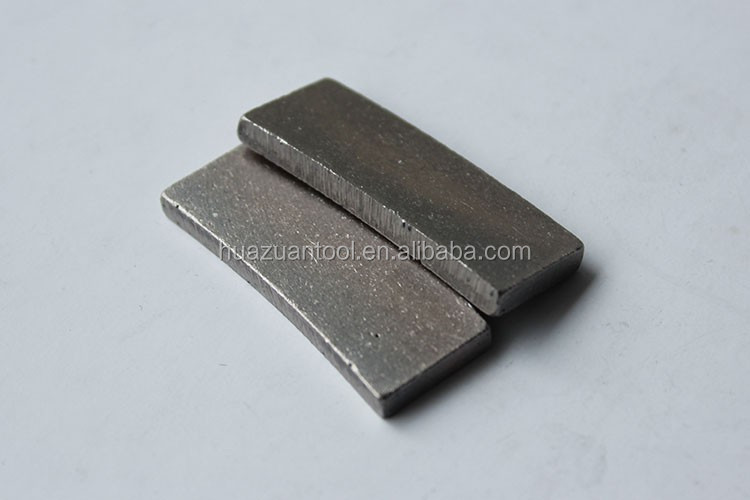

High Speed And Long Lifespand Diamond Segment For Circular Diamond Saw Blade Cutting Sandstone Granite Marble
Product Description
Product Description Product Name | Diamond cutting segment for cutting Sandstone |
Size | 40*3.5*15mm ( Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. ) |
Diameter | 350mm blade ( 900mm-3500mm blades diamond cutting segment can make ) |
Application | Diamond Segment Used for cutting granite ( marble, sandstone, limestone, lava, concrete, mine ) |
Feature |
1. Fast cutting & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping
|
Package | Color box,double blister card,skin packing,white box etc |
Supply ability | 50,00 sets/month(We accept mixed order) |
Quality | ISO9001&Gold Supplier Factory=Quality Control=Competitive Price=Owntechnology=OEM |
Diamond segments or rims are made up of a mixture of diamonds and metal powders. Diamonds used in blades are almost exclusively manufactured diamonds in various grit size and quality grades. In the manufacturing process, the metal powder and diamond grit mixture is hot pressed at high temperatures to form a solid metal alloy (called the bond or matrix) in which the diamond grit is retained.
The segment or rim is slightly wider than the blade core. This allows the cutting edge to penetrate through the material while protecting the steel body.
The application of bond (or Matrix)- Typically the following rule applies :
- For hard materials : use soft bonds.
- For soft materials : use hard bonds. Example :
Limestone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.
Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.
Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.
Single/Multi blades segment dimension | |||||
36” | 900 | 24 | 6.0/6.8 | 12/15/20 | 64 |
40” | 1000 | 24 | 6.4/7.2 | 12/15/20 | 70 |
48” | 1200 | 24 | 6.5/7.5 | 12/15/20 | 80 |
56” | 1400 | 24 | 7.5/8.5 | 12/15/20 | 92 |
64” | 1600 | 24 | 8.4/9.2 | 12/15/20 | 108 |
72” | 1800 | 24 | 9.2/10 | 12/15/20 | 120 |
80” | 2000 | 24 | 9.5/10.5 | 12/15/20 | 128 |
88” | 2200 | 24 | 10.5/11.5 | 12/15/20 | 132 |
100” | 2500 | 24 | 11.5/12.5 | 12/15/20 | 140 |
120” | 3000 | 24 | 12.5/13.5 | 12/15/20 | 160 |
140” | 3500 | 24 | 12.5/13.5 | 12/15/20 | 180 |
Other specifications of diamond segment are available upon request. | |||||
Application
Packaging & Shipping
About US - HUAZUAN
FAQ Q1:Are you a factory or trading company?A:We are factory.
Q2:Where is your factory located?How can I visit you?
A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up.Welcome you to visit our factory. Q3. How is your quality?
A. We have a very seriously control system(PDCA principle and 7S) and . We guarantee the high performance of our products.
Q4.What we should do if your products can not run well?
A:Give us detailed report.Analyze the reason.
Try to find a way to solve the problem.If it's our problem and not possible to solve then will give replacement. Q5. Do you have different quality for different kind of stone?
A. Yes, according hardness of stone and stone’s feature, we have different typology respectively.Contact Us
