Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry

Product Description

Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry Product Description

Application

1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting

2.For Cutting Reinforce Concrete

Diameter Of Wire Saw

7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm

Technology

Sintered,Electroplated,Vaccum Brazed

Coating Fix Injection

Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring

Beads/Meter

40/37/33/28/26pcs

Attention

l. Checking the saw regularly and adjust timely.

2.Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5.  Water supply is around 15-25L/min

 Feature

1.Very less breakage ratio when using therefore increase the working lifetime.
2.Automatic production ensures stable quality performance.
3.Safe, high efficiency and environment protecting.
Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry In the quarry work performance diamond wires, the granite with up to 25sqm / h away from the mountain.

Now working in the production plant Multi wires sawing with 80 and more ropes cutting 40sqm / h and also far beyond! The Diamond Wire Rope: The rope used on an industrial Diamond Wire Saw machine is a made from a loop of high tensile steel connected by a mechanical joiner. On the outside of the rope are carrier rings, on which diamonds are either sintered or retained by an electroplated layer. The final assembled diamond rope is then coated with an elastomeric compound, which helps to retain the components and to protect against corrosion. This results in a typical diameter over the carrier rings being around 10mm to 11mm. Features of the HUAZUAN Diamond Wire Saw range: 1.A range of models available capable of cutting 6” to 84” pipe
2.Hydraulic clamping and auto feed capability
3.Diver and ROV compatible
4.Diamond wire saw rental or purchase options available.
5.Powerful hydraulic drive
6.User replaceable clamp contact pads, wheels and wheel liners.
7.Front, back and top lifting swivels
8.All models designed with as many common parts as possible.
9.Crimped or continuous loop wires available (40 beads per meter)
10.Models available for shallow and deep water use Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry

Diameter(mm)

Applications

Coating

Bead/m

Cutting Speed(m2/h)

Wire Life(m2/m)

Φ11.5/Φ10.5

Reinforced concrete

rubber+spring

40

0.5-5

0.5-8

Φ11.5/Φ11.0

Granite mine/quarry

rubber/rubber+spring

40

2-12

7-22

Φ11.5/Φ11.0/Φ10.5

Marble mine/quarry

spring/spring+plastic

28-40

4-20

15-50

Φ11.0/10.5

Granite & marble block

plastic/rubber

37/40

6-30

7-50

Φ8.8/Φ8.5

Granite&marble profiling

plastic/rubber

33/37/40

7-30

7-40

Φ7.2/Φ8.5

Granite slab

plastic

37

0.5-1.6

6-15

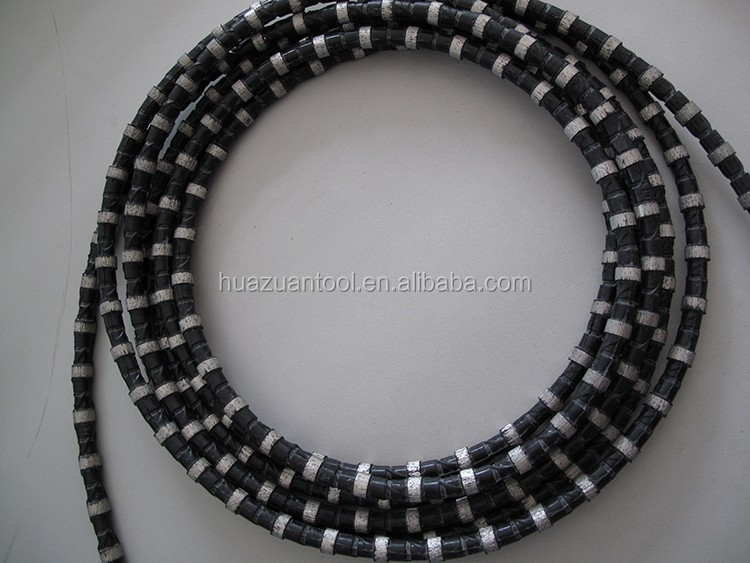

  Product Pictures 1.Diamond Wire Saw For Quarry:  We recommend rubber wire,it can protect the wire saw rope very well and increase the wire’s strength. The rubber has good temperature resistance, and it can be used when water is not enough.
Strong flexibility can reduce the cut-in-one-side problem. Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry 2.Diamond Wire Saw For Block Dressing: We recommend plastic wire,it can be used to dissect marble granite. It can cut accurately with small inter-space. It can cut the block with the thickness of 2.3M Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry
3.Diamond Wire Saw For Profiling : We recommend plastic wire for shaping operations provides a huge range of possibilities  It makes smooth surface, and accurate sizes with small inter-space. Columns and elements for the building industry can be produced in  much more economic way. Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry 4.Diamond Wire Saw For Reinforce Concrete Cutting: We recommend 10.5/11.5mm Rubber and Spring wire. The wires are widely used in the reinforced concrete with more than 5% steel inside. Used in the building constructions, cutting for houses,bridges,cement pipes and under waster buildings. 5.Diamond Multi-Wire Saw For Slab Cutting: Diamond multi-cutting wire saws are suitable for cutting the different kinds of large granite slabs Remark :modern gang saw can produce in a month 3000 to 4000 square meters of slabs of 2cm thickness The multi-wire can produce 5000 to 6000 square meters of slabs cut at any thickness between 1 to 5 cm. Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry Product Process Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry Packaging & Shipping Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry Our Services Why Choose us? 1.We are reliable Alibaba Gold Supplier,Support Trade Assurance
2.We are leading manufacturer in diamond tools, more than 20 years experience
3.Rich experience in Global market, export to more than 60 countries.
4.100% QC inspection Before Shipment
5.Keep researching and developing the latest technology
6.Reply within 24 hours. Company Information Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry
Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry   Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry FAQ What's different about the Diamond Wire Saw? The diamond wire saw cutter differs from others, such as the bandsaw, by using abrasion instead of saw teeth. Thanks to the hardness of diamonds, the abrasion technique can be used to cut through almost any material that is softer than the diamond abrasive. The process also produces less kerf and wasted materials when compared with conventional solid blades. The wire cutter also allows circular cutting on all sides, preventing the wire from getting pinched and is therefore an effective method of resisting compressive forces while cutting a wide range of materials. Contact Us Granite Marble Block Cutting Diamond Wire Saw Used On Diamond Wire Saw Machine For Quarry

Contact us if you need more details on High Quality High Quality Diamond Wire Saw. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Diamond Wire Saw Machine、Diamond Wire Saw For Quarry. If these products fail to match your need, please contact us and we would like to provide relevant information.
